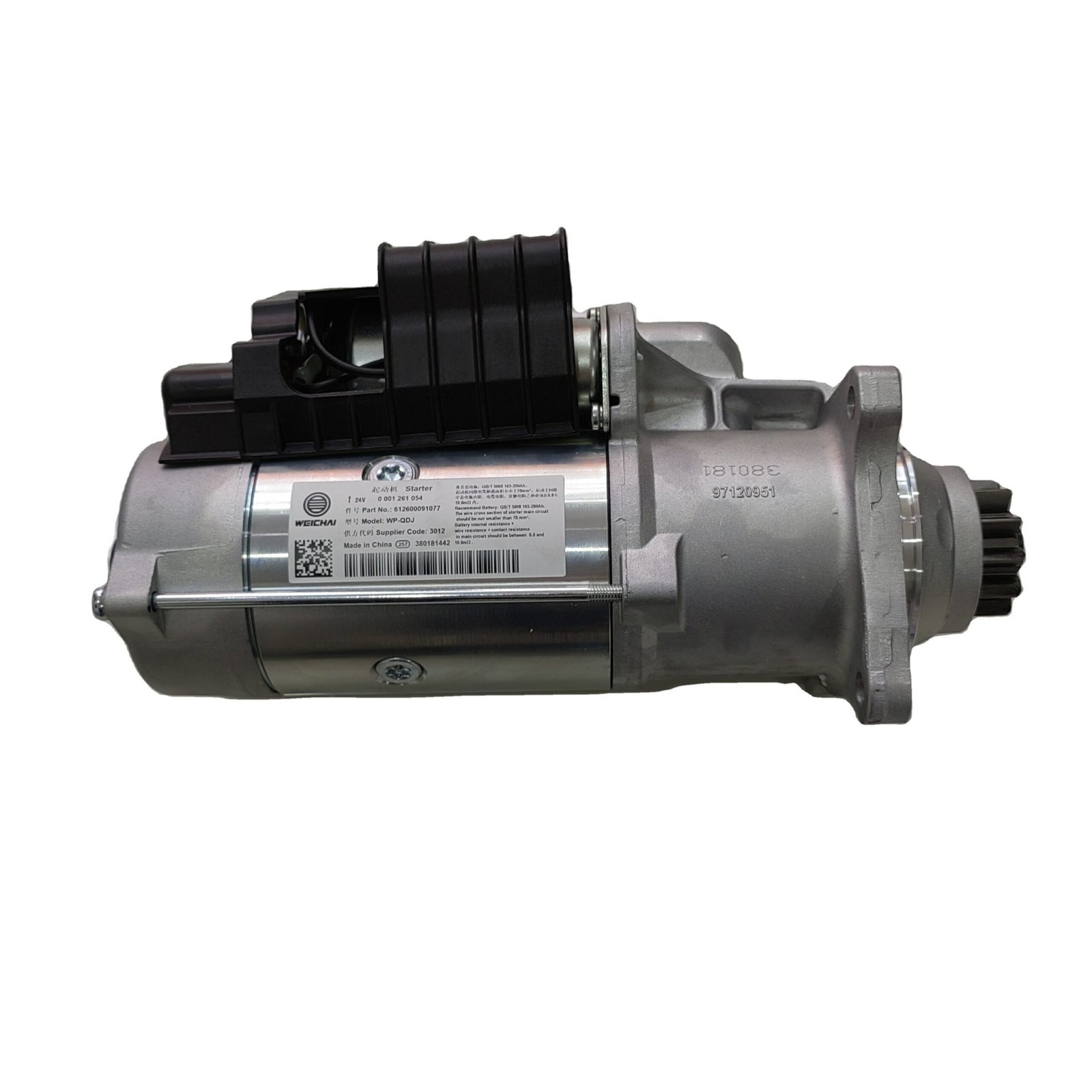

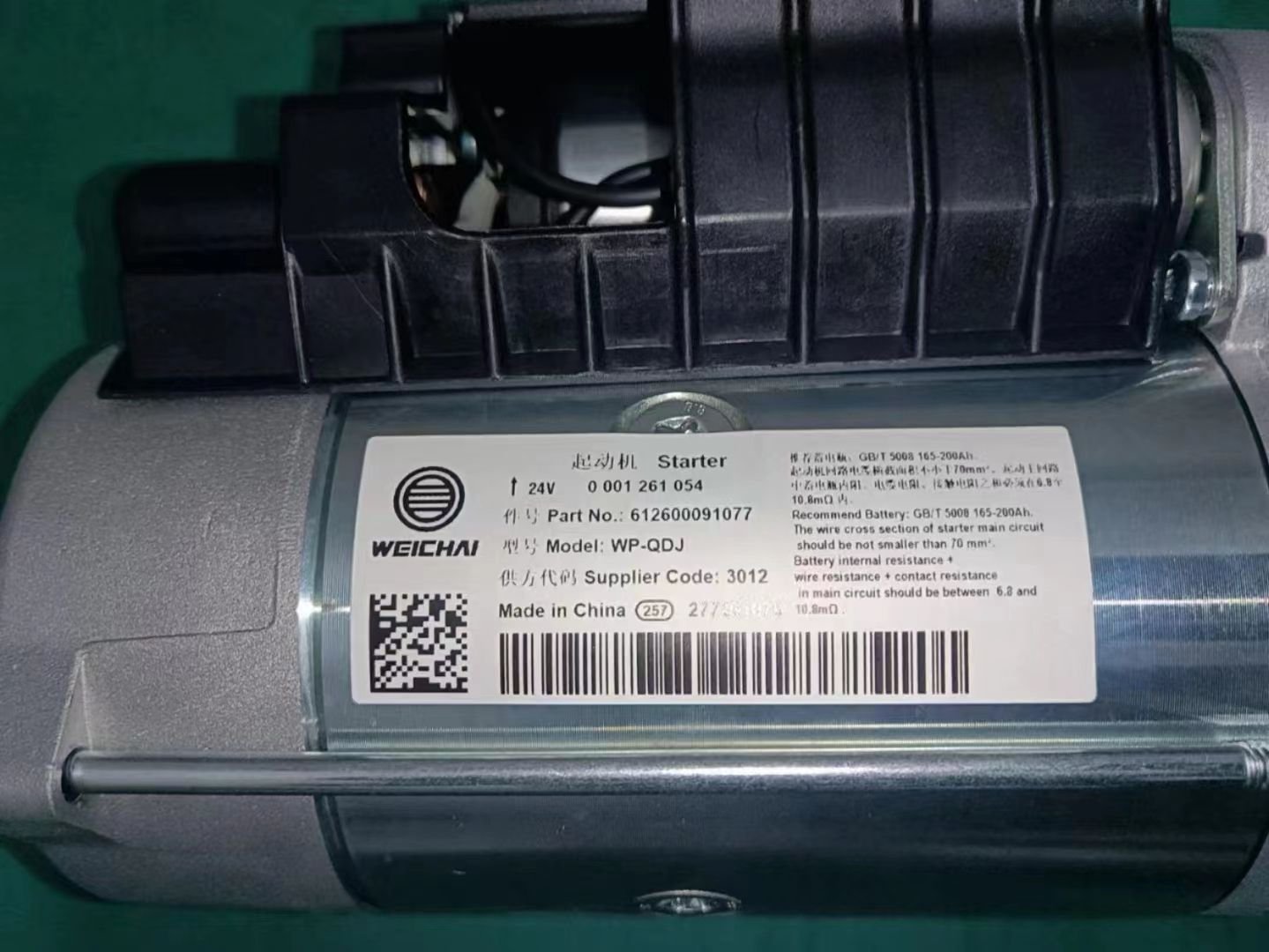

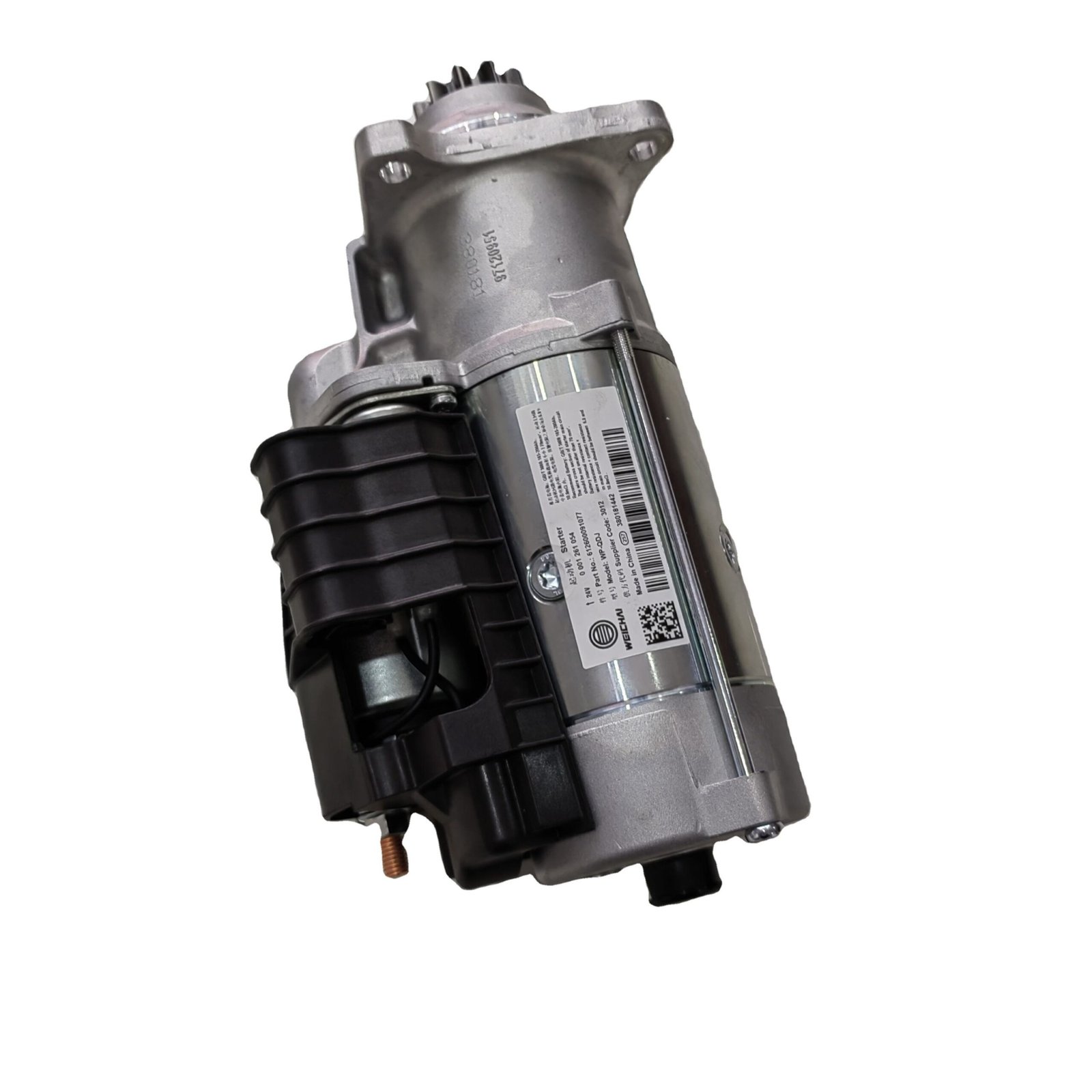

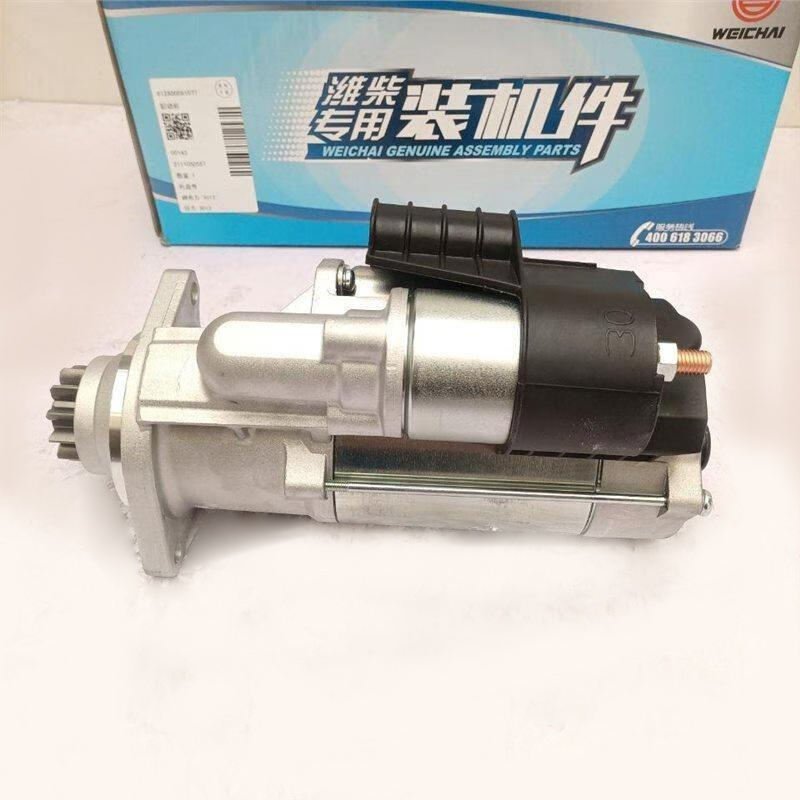

Part number: 612600091077
Working voltage: 24V DC
Rated power: 9.0 kW
Driving gear: 11 teeth, modulus 3.
Mounting flange: 3-hole mounting, with stop φ 110 mm.
Rotation direction: clockwise (viewed from the driving end)
Structural form: planetary gear deceleration starter and electromagnetic pull-in switch are integrated.
Net weight of assembly: about 10 kg.
Alternate part numbers: 1590001602 or 612600091076
